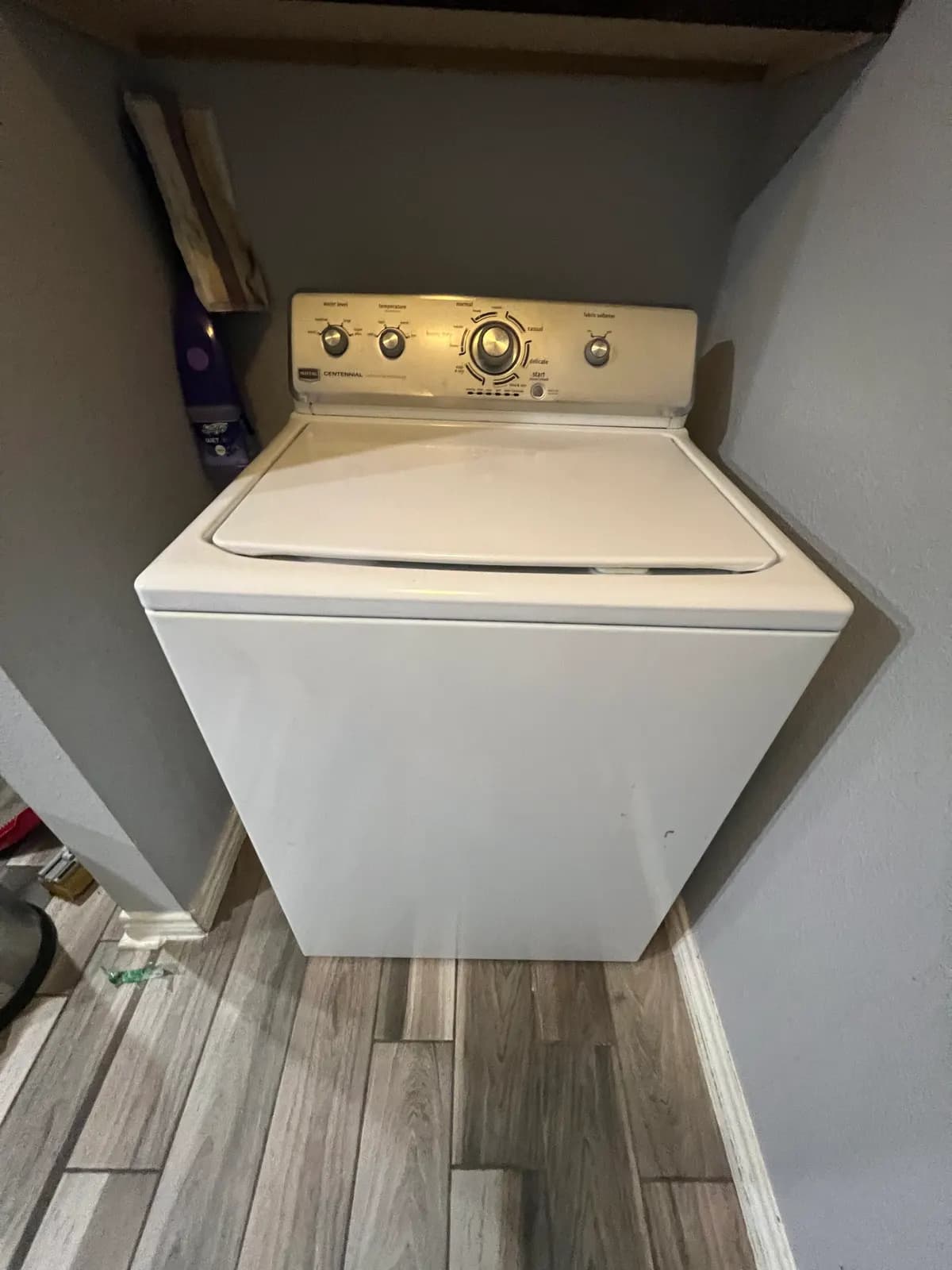

MAYTAG Washer Repair — Model MVWC200XW2 | Austin, TX
Reported issue: Washer does not enter the spin cycle.
Diagnosis: The shifter was found to transition into spin mode successfully, but the basket failed to spin. Testing indicated the shifter is functioning correctly, but the run capacitor was below specification.
Solution: The capacitor was replaced as it was found to have a measured capacitance of approximately 29 µF, which is below the required 45 µF.
Recommendations: Monitor the washer for any further issues during operation. Regular maintenance checks on components like the capacitor are advised.
Repair Details
Failed Component
run capacitor
Measurements
AC voltage and DC voltage tests confirmed the shifter is receiving required signals. The run capacitor measured at approximately 29 µF.
